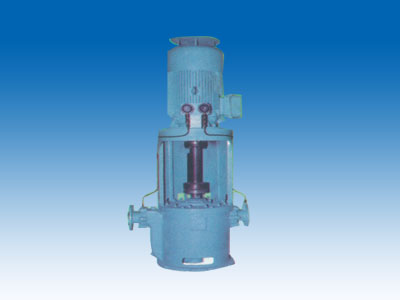

CLZⅡSeries Marine Vertical Self-Priming Centrifugal Pump

Introduction:

CLZ II series marine vertical self-priming centrifugal pumps have advantage of simple structure, light weight, excellent self-priming,easy installation, use friendly and so on. The key point techology was won national patent title. This series pump can be used to bilge, ballast, fire, cooling and used in other complete. The transfer water should not exceed 80℃.Inlet/outlet flange are come up to GB9113.3（PN=1.6MPa）and GB2505 (PN=1.6MPa） standard.

The explanation for the pump type

Table1

Type	voltage 380V Frequency 50Hz
	Main technical Performance parameters
	Capacity m³/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Matched power kW	Pump weight Kg
40CLZⅡ-2	5	60	2900	3.5	4.3	5.5
40CLZⅡ-2A	4	54		3.5	3.1	5.5
40CLZⅡ-2B	4	38		3.5	2.2	4
50CLZⅡ-4.5	12.5	32		4	2.7	4
50CLZⅡ-4.5A	11.2	26		4	1.93	3
50CLZⅡ-4.5B	10	28		4	1.86	3
50CLZⅡ-4.5C	10	20.5		4.5	1.33	2.2
50CLZⅡ-6	20	32		4	3.6	5.5
50CLZⅡ-6A	17	28		4	2.64	4
50CLZⅡ-9	27	14.5		4	1.87	3
50CLZⅡ-9A	21	12		4	1.25	2.2
50CLZⅡ-7	12.5	20		4	1.33	2.2
50CLZⅡ-7A	10	17		4	0.91	1.5
50CLZⅡ-7B	10	14		4	0.76	1.5
50CLZⅡ-3	12.5	50		4	4.9	7.5
50CLZⅡ-3A	10	45		4	3.5	5.5
50CLZⅡ-3B	10	32		4	2.5	4
50CLZⅡ-4	20	50		4	6.5	7.5
50CLZⅡ-4A	17	46		4	5.1	7.5
50CLZⅡ-4B	17	36		4	4	5.5
65CLZⅡ-9	25	20		4	2.3	3
65CLZⅡ-9A	21	17		4	1.62	2.2
65CLZⅡ-6	25	32		4	4.2	5.5
65CLZⅡ-6A	23	27.1		4	3.3	5.5
65CLZⅡ-6B	21	28		4	3.1	4
65CLZⅡ-5	25	45		4	6.52	7.5

Continued table

Type	voltage 380V Frequency 50Hz
	Main technical Performance parameters
	Capacity m³/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Matched power kW	Pump weight Kg
100CLZⅡ-17A	72	18	2900	4.5	5.8	7.5
100CLZⅡ-12	80	32		4.8	10.75	15
100CLZⅡ-12A	72	28		4.8	8.6	11
100CLZⅡ-8	80	50		4.8	17.9	22
100CLZⅡ-8A	72	46		4.8	15.3	18.5
100CLZⅡ-6	80	80		5	32.9	37
100CLZⅡ-6A	72	75		5	28.8	37
100CLZⅡ-18.5	100	20		5	8.25	11
100CLZⅡ-18.5A	95	18		5	7.3	11
100CLZⅡ-13	100	32		5	12.5	18.5
100CLZⅡ-13A	95	28		5	10.7	15
100CLZⅡ-9	100	50		5	22	30
100CLZⅡ-9A	95	45		5	19.4	30
100CLZⅡ-6.5	100	80		5	36.3	45
100CLZⅡ-6.5A	95	75		5	33.44	45
100CLZⅡ-5	100	120		5	65.33	75
100CLZⅡ-5A	95	110		55	58.06	75
100CLZⅡ-5B	90	97		5	48.5	55
125CLZⅡ-5	120	120		5	67.6	90
125CLZⅡ-5A	114	108		5	57.8	75
125CLZⅡ-5B	108	97		5	50	75
125CLZⅡ-23	160	20		5.2	14.1	18.5
125CLZⅡ-16.5	160	32		5.2	21.1	30
125CLZⅡ-16.5A	150	28		5.2	17.9	22
125CLZⅡ-12	160	50		6	30.7	37
125CLZⅡ-12A	150	46		6	26.5	30
125CLZⅡ-8	160	80		6	58.1	75
125CLZⅡ-8A	150	75		6	51	75
125CLZⅡ-8B	150	68		6	47.1	55
125CLZⅡ-13	200	50		6	38.34	45

Continued table

Type	voltage 380V Frequency 50Hz
	Main technical Performance parameters
	Capacity m³/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Matched power kW	Pump weight Kg
125CLZⅡ-13A	185	45		6	31.9	37
125CLZⅡ-9	200	80		6	70.3	90
125CLZⅡ-9A	180	72		6	57	75
125CLZⅡ-7	200	125		6	109.77	132
125CLZⅡ-7A	190	112.8		6	94.1	110
125CLZⅡ-7B	180.5	101.8		6	82	110
150CLZⅡ-10	265	86		5.5	100.1	132
150CLZⅡ-10A	251	77		5.5	84.86	110
200CLZⅡ-11.5	300	32		5	43.6	55
200CLZⅡ-11.5A	282	28.3		5	36.8	45
200CLZⅡ-11.5B	264	24.8		5	30.73	37
200CLZⅡ-24.5	450	15		6	29.2	37
200CLZⅡ-24.5A	418	13		6	23.86	30
200CLZⅡ-10	400	45		5.2	75.4	90
200CLZⅡ-10A	380	41		5.2	66.27	90
200CLZⅡ-10B	340	32.5		5.2	47	55
250CLZⅡ-16	500	28		5.5	63.5	75
250CLZⅡ-16A	475	25.3		5.5	55.45	75

Table2

Type	voltage 440V Frequency 60Hz
	Main technical Performance parameters
	Capacity m³/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Matched power kW	Pump weight Kg
40CLZⅡ₁-2	6	87.4	3500	4	7.93	11
40CLZⅡ₁-2A	4.8	77.7		4	5.64	7.5
40CLZⅡ₁-2B	4.8	54.7		4	3.97	5.5
50CLZⅡ₁-4.5	15	46		4.4	4.7	5.5
50CLZⅡ₁-4.5A	13.4	37.4		4.4	3.41	5.5
50CLZⅡ₁-4.5B	12	40.3		4.4	3.3	4
50CLZⅡ₁-4.5C	12	29.5		4.4	2.41	3
50CLZⅡ₁-6	24.1	46.6		4.4	6.24	7.5
50CLZⅡ₁-6A	20.4	40.3		4.4	4.57	5.5
50CLZⅡ₁-9	32.6	21.1		4.4	3.29	5.5
50CLZⅡ₁-9A	25.2	17.3		4.4	2.16	3
50CLZⅡ₁-7	15	29.1		4.4	2.33	4
50CLZⅡ₁-7A	12	24.5		4.4	1.57	2.2
50CLZⅡ₁-7B	12	20.1		4.4	1.31	2.2
50CLZⅡ₁-3	15	72		4.4	8.4	11
50CLZⅡ₁-3A	12	64.8		4.4	6.1	7.5
50CLZⅡ₁-3B	12	46		4.4	4.3	5.5
50CLZⅡ₁-4	24	72		4.4	11.2	15
50CLZⅡ₁-4A	20.4	66.2		4.4	8.8	11
50CLZⅡ₁-4B	20.4	51.8		4.4	6.85	11
65CLZⅡ₁-9	30.2	29.1		4.4	3.9	5.5
65CLZⅡ₁-9A	25.2	24.5		4.4	2.8	4
65CLZⅡ₁-6	30.2	46.6		4.4	7.5	11
65CLZⅡ₁-6A	27.5	39		4.5	5.72	7.5
65CLZⅡ₁-6B	25.2	40.3		4.5	5.42	7.5
65CLZⅡ₁-5	30.2	65.6		4.5	11.47	15
65CLZⅡ₁-5A	27	52.5		4.5	8.2	11
65CLZⅡ₁-4.5	30.2	87.4		4.4	16.3	22
65CLZⅡ₁-4.5A	26.4	77.7		4.4	12.7	15
65CLZⅡ₁-4.5B	24	54.7		4.6	8.12	11

Table2

Type	voltage 440V Frequency 60Hz
	Main technical Performance parameters
	Capacity m³/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Matched power kW	Pump weight Kg
65CLZⅡ₁-3	30	115	3500	4.9	26.8	30
65CLZⅡ₁-3A	26.4	108		4.9	22.2	30
65CLZⅡ₁-3B	24	73.4		4.9	13.7	18.5
65CLZⅡ₁-8	42	46		5.5	9.6	11
65CLZⅡ₁-8A	38.4	40.3		5.5	7.66	11
65CLZⅡ₁-5.5	42	70		4.9	15.1	18.5
65CLZⅡ₁-5.5A	27.3	56		4.9	8	11
80CLZⅡ₁-13	54.3	30.6		5.4	7.8	11
80CLZⅡ₁-13A	48	25.9		5.4	5.94	7.5
80CLZⅡ₁-9	60	46		5.5	12.5	15
80CLZⅡ₁-9A	54	37		5.5	9.4	11
80CLZⅡ₁-6	60.3	72.9		5.6	20.8	30
80CLZⅡ₁-6A	54	69		5.6	18.1	22
80CLZⅡ₁-6B	54	57.6		5.6	15.1	18.5
80CLZⅡ₁-7.5	72.4	72.9		4.9	25.2	30
80CLZⅡ₁-7.5A	66	67.7		4.9	21.7	30
80CLZⅡ₁-5.5	54.3	90.3		4.9	25.2	30
80CLZⅡ₁-5.5A	48	83.5		4.9	20.6	30
80CLZⅡ₁-5.5B	48	72		4.9	17.75	22
80CLZⅡ₁-5	72.4	116.6		5.2	43.1	55
80CLZⅡ₁-5A	68.4	103.7		5.2	35.8	45
80CLZⅡ₁-5B	64.8	93.4		5.2	31.1	37
80CLZⅡ₁-3	60.3	174.8		4.9	63.79	75
80CLZⅡ₁-3A	54	158		4.9	51.6	75
80CLZⅡ₁-3B	51	125.2		4.9	38.63	45
100CLZⅡ₁-17	96.5	29		4.5	11.9	15
100CLZⅡ₁-17A	86.4	25.9		4.5	9.83	15
100CLZⅡ₁-12	96.5	46.6		4.8	18.8	22
100CLZⅡ₁-12A	86	40.3		4.8	14.74	18.5
100CLZⅡ₁-8	96.6	72.9		5.2	32.5	37

Table2

Type	voltage 440V Frequency 60Hz
	Main technical Performance parameters
	Capacity m³/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Matched power kW	Pump weight Kg
100CLZⅡ₁-8A	86	66	3500	5.2	26.64	37
100CLZⅡ₁-6	96.5	116.5		5	57.74	75
100CLZⅡ₁-6A	86	108		5	49.58	55
100CLZⅡ₁-18.5	120.7	29		5	14.44	18.5
100CLZⅡ₁-18.5A	114	25.9		5	12.56	15
100CLZⅡ₁-13	120.7	46.6		5	21.87	30
100CLZⅡ₁-13A	114	40		5	18.25	22
100CLZⅡ₁-9	120.7	72.9		5.7	38.6	45
100CLZⅡ₁-9A	114	64.8		5.7	33.52	37
100CLZⅡ₁-6.5	120.7	116.5		5	63.8	75
100CLZⅡ₁-6.5A	114	108		5	57.79	75
100CLZⅡ₁-5	120	175		5	114.3	132
100CLZⅡ₁-5A	114	158		5	98.1	110
100CLZⅡ₁-5B	108	139.7		5	83.8	110
125CLZⅡ₁-5	144.8	174.5		5.5	118.6	160
125CLZⅡ₁-5A	136.8	155.5		5.5	99.84	132
125CLZⅡ₁-5B	129.6	139.6		5.5	86.4	110
125CLZⅡ₁-23	193	29		5.2	24.57	30
125CLZⅡ₁-16.5	193	46.6		5.2	37.1	45
125CLZⅡ₁-16.5A	180	40		5.2	30.63	37
125CLZⅡ₁-12	193	72.8		6	53.87	75
125CLZⅡ₁-12A	180	66		6	46.2	55
125CLZⅡ₁-8	193.1	116.6		6.2	102	132
125CLZⅡ₁-8A	180	108		6.2	88.2	110
125CLZⅡ₁-8B	180	98		6.2	81.39	110
125CLZⅡ₁-13	241.4	72.8		6	67.38	75
125CLZⅡ₁-13A	222	64.8		6	55.16	75
125CLZⅡ₁-9	241.4	116.6		6.4	125.6	160
125CLZⅡ₁-9A	216	103.7		6.4	100	132
125CLZⅡ₁-7	241	182		6	192.6	250

Continued table

Type	voltage 440V Frequency 60Hz
	Main technical Performance parameters
	Capacity m³/h	Head m	Speed r/min	NPSHr m	Shaft power kW	Matched power kW	Pump weight Kg
125CLZⅡ₁-7A	228	162	3500	6	162.17	200
125CLZⅡ₁-7B	216	146.6		6	141.3	160
150CLZⅡ₁-10	319.8	125.5		5.5	176.2	200
150CLZⅡ₁-10A	301	110.8		5.5	146.43	200
200CLZⅡ₁-11.5	362	46.7	1750	5	76.7	90
200CLZⅡ₁-11.5A	338	40.7		5	63.47	75
200CLZⅡ₁-11.5B	316.8	35.7		5	53.1	75
200CLZⅡ₁-24.5	543	21.9		6	51.38	75
200CLZⅡ₁-24.5A	501	18.7		6	41.13	55
200CLZⅡ₁-10	482	65		5.2	131.2	160
200CLZⅡ₁-10A	456	59		5.2	114.44	132
200CLZⅡ₁-10B	408	46.8		5.2	81.22	110
250CLZⅡ₁-16	603	40.9		5.5	111.9	132
250CLZⅡ₁-16A	570	36.4		5.5	95.73	110
